ABS block dimensions question

[jjorgensen52]

Could someone who's truck is still intact and has abs measure the dimensions (height, width, depth) of the spot where the abs block is on the drivers side of the engine bay? Help is appreciated.



[GM TURBO]

Re: ABS block dimensions question

5 1/4" tall - there is more room in the front due to the wheel well - you can go up to 7"

8" from the fender to the edge of the ABS module.

10" in length - there is more room here if needed.

Whatcha doin?



[jjorgensen52]

Re: ABS block dimensions question

5 1/4" tall - there is more room in the front due to the wheel well - you can go up to 7"

8" from the fender to the edge of the ABS module.

10" in length - there is more room here if needed.

Whatcha doin?

I've dropped the abs entirely and i'm trying to figure how i'm going to fit all the coolers in the engine bay, so I'm thinking I'm going to go with A/A up front and reroute my oil lines through the in-radiator oil and trans coolers, then put in a trans cooler where the abs block used to be ... and probably either louvre or cut-and-screen the wheel well below it to allow better air flow.

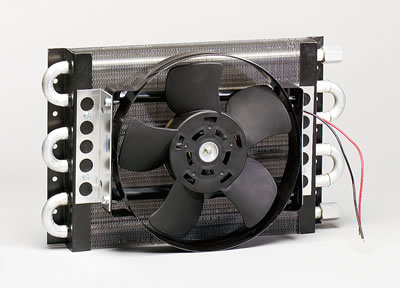

Like this cooler (10.5 x 18 x 4, 1250cfm)

From what i remember of my truck when it was in one peice, without the stock air box there was pretty decent space lengthwise, and i could pull 10.5" width wise.... too bad I don't have any good pictures of the block itself
